HDPE Hand Stop Gate Wall Mounted ≤ 1 MwC
Hand Stop Gates

HDPE Hand Stop Gate Wall Mounted ≤ 1 MwC

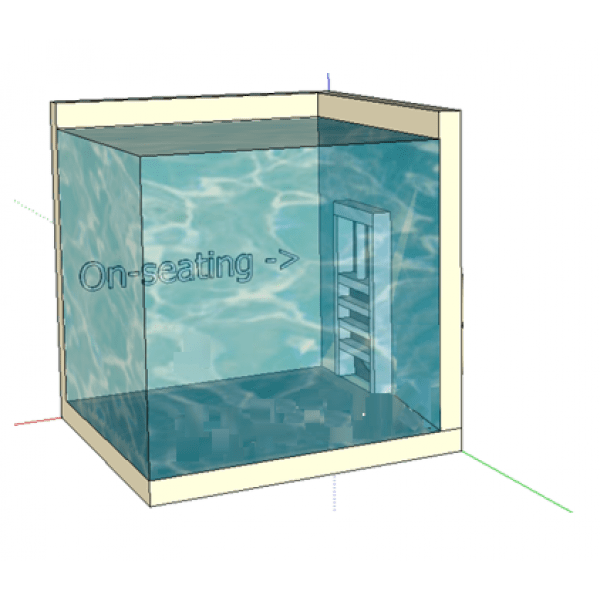

Max. 1 MwC, On Seating Pressure

Article number RRHA0150WA
Productname RHA
Dimension Ø 150mm
Materials HDPE / AIS316 / EPDM
Hand Stop Gates

HDPE Hand Stop Gate Wall Mounted ≤ 1 MwC

Max. 1 MwC, On Seating Pressure

Article number RRHA0200WA
Productname RHA
Dimension Ø 200mm
Materials HDPE / AIS316 / EPDM
Hand Stop Gates

HDPE Hand Stop Gate Wall Mounted ≤ 1 MwC

Max. 1 MwC, On Seating Pressure

Article number RRHA0250WA
Productname RHA
Dimension Ø 250mm
Materials HDPE / AIS316 / EPDM
Hand Stop Gates

HDPE Hand Stop Gate Wall Mounted ≤ 1 MwC

Max. 1 MwC, On Seating Pressure

Article number RRHA0300WA
Productname RHA
Dimension Ø 300mm
Materials HDPE / AIS316 / EPDM
Hand Stop Gates

HDPE Hand Stop Gate Wall Mounted ≤ 1 MwC

Max. 1 MwC, On Seating Pressure

Article number RRHA0400WA
Productname RHA
Dimension Ø 400mm
Materials HDPE / AIS316 / EPDM
Hand Stop Gates

HDPE Hand Stop Gate Wall Mounted ≤ 1 MwC

Max. 1 MwC, On Seating Pressure

Article number RRHA0500WA
Productname RHA
Dimension Ø 500mm
Materials HDPE / AIS316 / EPDM
Size

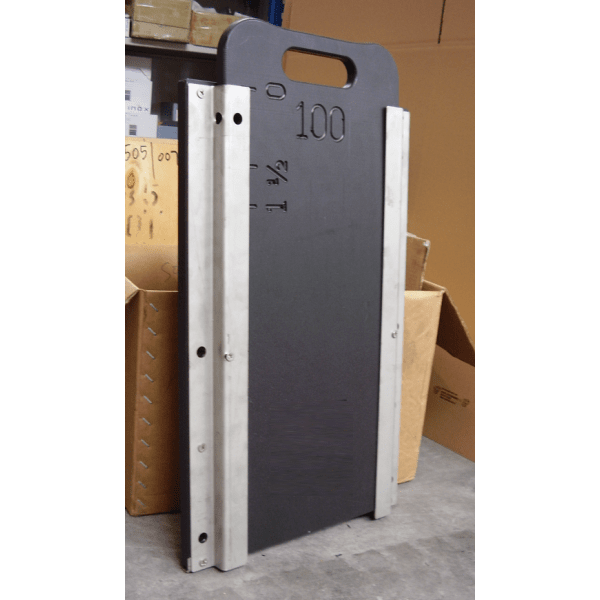

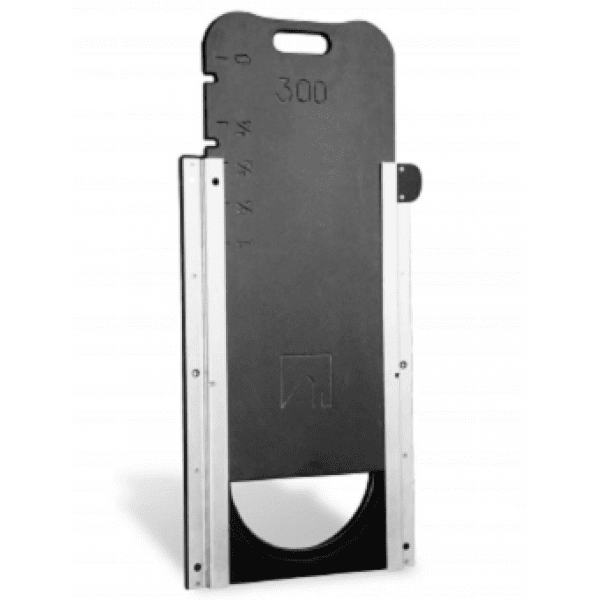

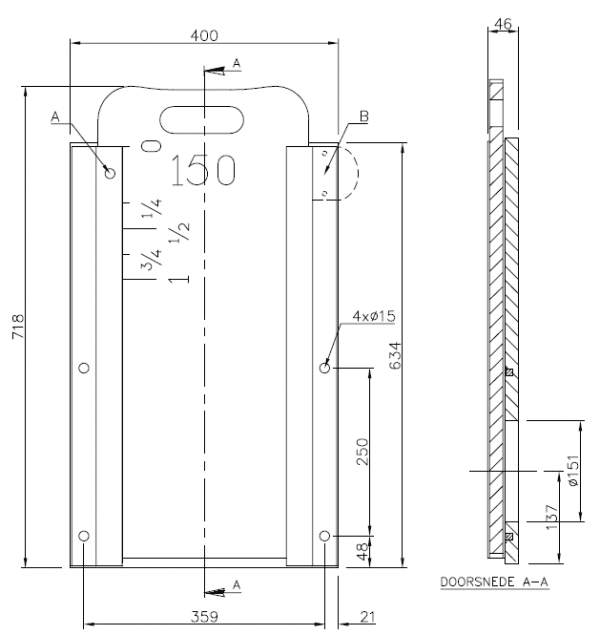

Features & Benefits: HDPE Hand Stop Gate Wall Mounted ≤ 1 MwC - Ø 150mm

ROwat Hand gates are being used to regulate the inlet side of Fluid Streams in for example pipes, rivers, ditches or agricultural area’s.

The ROwat RHA Hand gate can be installed on Headwalls, Sheet Piles or Direct at the inlet section of a pipe.

ROwat Hand gates are equipped with a position indicator and is able to control the flow of water in 4 positions.





  • Light weight, Fast installation and Easy handling
  • UV Stable, Durable and Expected service life up to 25 years
  • Corrosion restistant
  • Equiped 4 position locking system
  • Equiped with position indicator
Product Group Handgates
Product Name RHA
Materials HDPE / AIS316 / EPDM
Sealing 4 Sided
Weight in KG  13
Sold Per Piece
Stock Item Yes
Accessories Available Not Applicable

Downloads

Technical datasheet
PDF Drawing

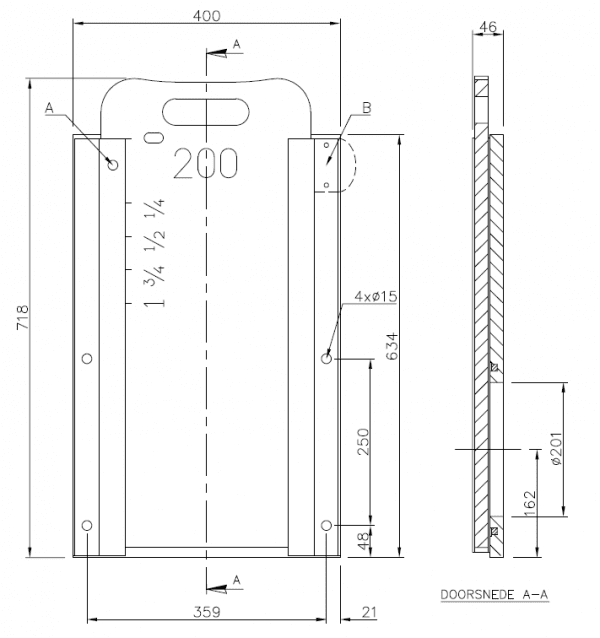

Features & Benefits: HDPE Hand Stop Gate Wall Mounted ≤ 1 MwC - Ø 200mm

ROwat Hand gates are being used to regulate the inlet side of Fluid Streams in for example pipes, rivers, ditches or agricultural area’s.

The ROwat RHA Hand gate can be installed on Headwalls, Sheet Piles or Direct at the inlet section of a pipe.

ROwat Hand gates are equipped with a position indicator and is able to control the flow of water in 4 positions.





  • Light weight, Fast installation and Easy handling
  • UV Stable, Durable and Expected service life up to 25 years
  • Corrosion restistant
  • Equiped 4 position locking system
  • Equiped with position indicator
Product Group Handgates
Product Name RHA
Materials HDPE / AIS316 / EPDM
Sealing 4 Sided
Weight in KG  13
Sold Per Piece
Stock Item Yes
Accessories Available Not Applicable

Downloads

Technical datasheet
PDF Drawing

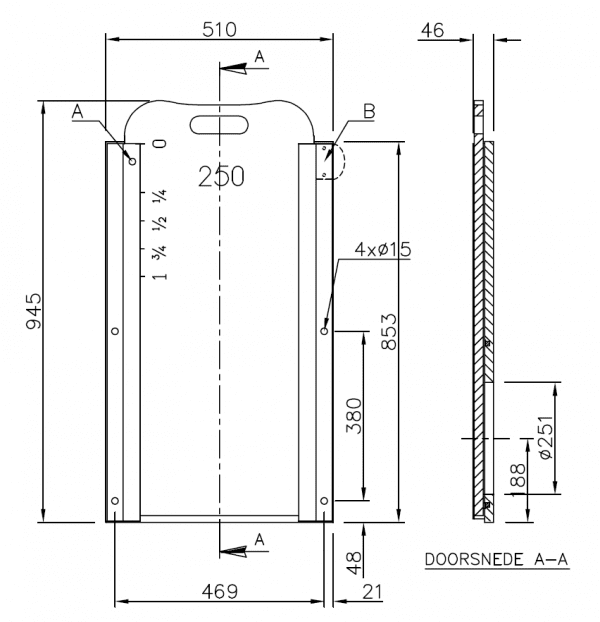

Features & Benefits: HDPE Hand Stop Gate Wall Mounted ≤ 1 MwC - Ø 250mm

ROwat Hand gates are being used to regulate the inlet side of Fluid Streams in for example pipes, rivers, ditches or agricultural area’s.

The ROwat RHA Hand gate can be installed on Headwalls, Sheet Piles or Direct at the inlet section of a pipe.

ROwat Hand gates are equipped with a position indicator and is able to control the flow of water in 4 positions.





  • Light weight, Fast installation and Easy handling
  • UV Stable, Durable and Expected service life up to 25 years
  • Corrosion restistant
  • Equiped 4 position locking system
  • Equiped with position indicator
Product Group Handgates
Product Name RHA
Materials HDPE / AIS316 / EPDM
Sealing 4 Sided
Weight in KG  22
Sold Per Piece
Stock Item Yes
Accessories Available Not Applicable

Downloads

Technical datasheet
PDF Drawing

Features & Benefits: HDPE Hand Stop Gate Wall Mounted ≤ 1 MwC - Ø 300mm

ROwat Hand gates are being used to regulate the inlet side of Fluid Streams in for example pipes, rivers, ditches or agricultural area’s.

The ROwat RHA Hand gate can be installed on Headwalls, Sheet Piles or Direct at the inlet section of a pipe.

ROwat Hand gates are equipped with a position indicator and is able to control the flow of water in 4 positions.





  • Light weight, Fast installation and Easy handling
  • UV Stable, Durable and Expected service life up to 25 years
  • Corrosion restistant
  • Equiped 4 position locking system
  • Equiped with position indicator
Product Group Handgates
Product Name RHA
Materials HDPE / AIS316 / EPDM
Sealing 4 Sided
Weight in KG  13
Sold Per Piece
Stock Item Yes
Accessories Available Not Applicable

Downloads

Technical datasheet
PDF Drawing

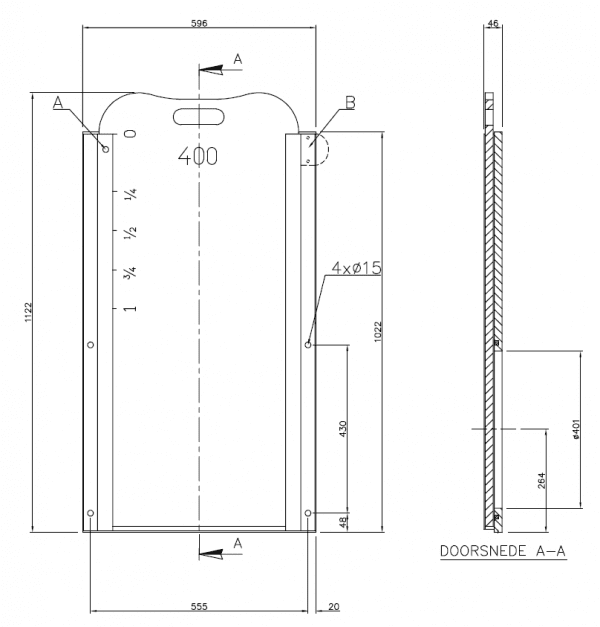

Features & Benefits: HDPE Hand Stop Gate Wall Mounted ≤ 1 MwC - Ø 400mm

ROwat Hand gates are being used to regulate the inlet side of Fluid Streams in for example pipes, rivers, ditches or agricultural area’s.

The ROwat RHA Hand gate can be installed on Headwalls, Sheet Piles or Direct at the inlet section of a pipe.

ROwat Hand gates are equipped with a position indicator and is able to control the flow of water in 4 positions.





  • Light weight, Fast installation and Easy handling
  • UV Stable, Durable and Expected service life up to 25 years
  • Corrosion restistant
  • Equiped 4 position locking system
  • Equiped with position indicator
Product Group Handgates
Product Name RHA
Materials HDPE / AIS316 / EPDM
Sealing 4 Sided
Weight in KG  31
Sold Per Piece
Stock Item Yes
Accessories Available Not Applicable

Downloads

Technical datasheet
PDF Drawing

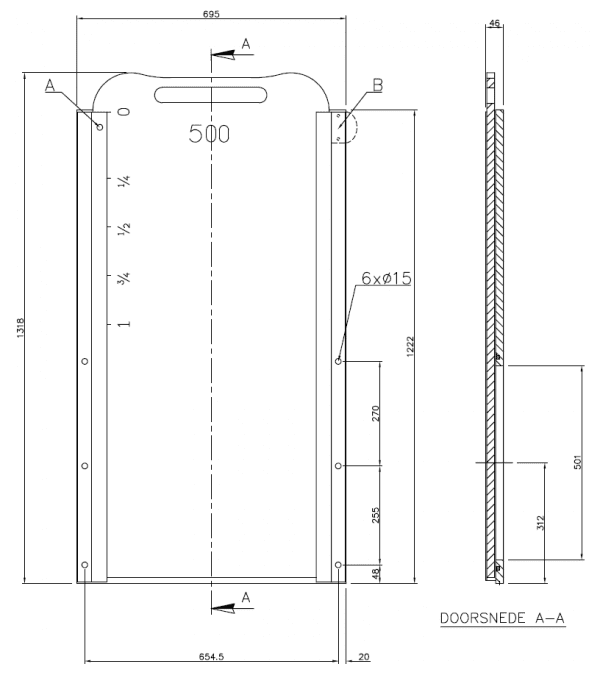

Features & Benefits: HDPE Hand Stop Gate Wall Mounted ≤ 1 MwC - Ø 500mm

ROwat Hand gates are being used to regulate the inlet side of Fluid Streams in for example pipes, rivers, ditches or agricultural area’s.

The ROwat RHA Hand gate can be installed on Headwalls, Sheet Piles or Direct at the inlet section of a pipe.

ROwat Hand gates are equipped with a position indicator and is able to control the flow of water in 4 positions.





  • Light weight, Fast installation and Easy handling
  • UV Stable, Durable and Expected service life up to 25 years
  • Corrosion restistant
  • Equiped 4 position locking system
  • Equiped with position indicator
Product Group Handgates
Product Name RHA
Materials HDPE / AIS316 / EPDM
Sealing 4 Sided
Weight in KG  42
Sold Per Piece
Stock Item Yes
Accessories Available Not Applicable

Downloads

Technical datasheet
PDF Drawing
