ROwat-MWstop® PE
Inline Check Valves

ROwat-MWstop® PE

5 MwC - On Seating Pressure

Article number MW075-55-PE
Productname ROwat-MWstop® PE
Dimension Ø 075mm
Materials HDPE / AISI316 / EPDM
Inline Check Valves

ROwat-MWstop® PE

5 MwC - On Seating Pressure

Article number MW110-55-PE
Productname ROwat-MWstop® PE
Dimension Ø 110mm
Materials HDPE / AISI316 / EPDM
Inline Check Valves

ROwat-MWstop® PE

5 MwC - On Seating Pressure

Article number MW125-55-PE
Productname ROwat-MWstop® PE
Dimension Ø 125mm
Materials HDPE / AISI316 / EPDM
Inline Check Valves

ROwat-MWstop® PE

5 MwC - On Seating Pressure

Article number MW160-55-PE
Productname ROwat-MWstop® PE
Dimension Ø 160mm
Materials HDPE / AISI316 / EPDM
Inline Check Valves

ROwat-MWstop® PE

5 MwC - On Seating Pressure

Article number MW200-55-PE
Productname ROwat-MWstop® PE
Dimension Ø 200mm
Materials HDPE / AISI316 / EPDM
Size

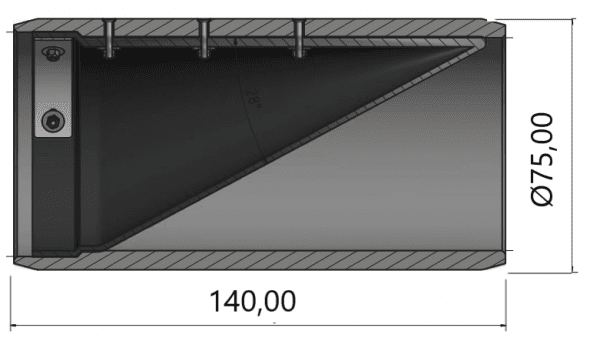

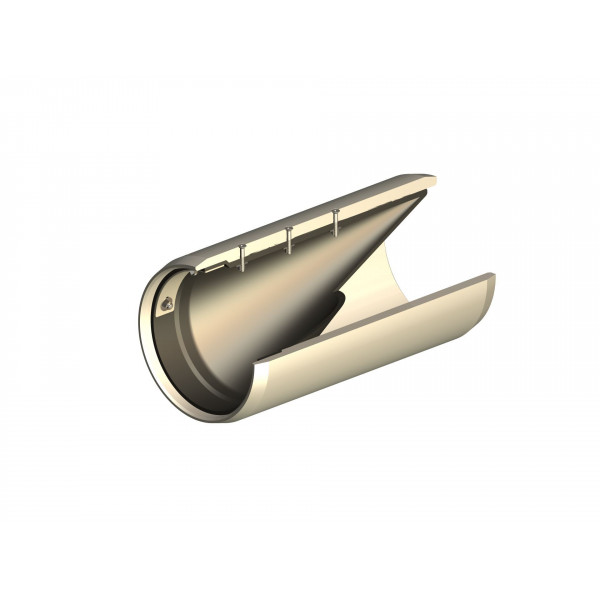

Features & Benefits: ROwat-MWstop® PE - Ø 075mm

ROwat-MWstop® is an Inline Check Valve which distinguish itself by its unique membrane and PE body.

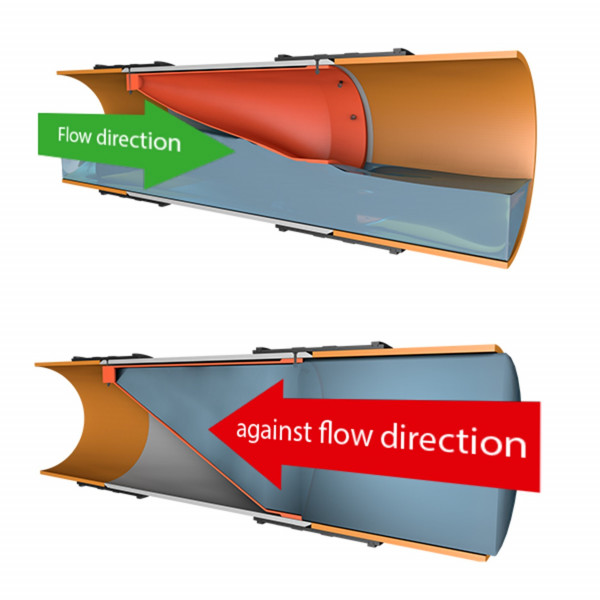

The ROwat-MWstop® backwater valve reliably protects infrastructures or buildings from Flooding and. The integrated membrane reliably closes the pipe leading to the property in the event of backwater flow during for example heavy weather events or failure of the pumped outflow.

The ROwat-MWstop® PE is suitable to be installed both horizontal and vertical in, Sewage Systems, WWTP’s, Housing, Apartment buildings and can be used as a stink shield as well.

This results that the ROwat-MWstop® has been proven its reliability and durability successfully for many years in projects all over the world.

Product Group Inline Check Valves
Product Name ROwat-MWstop®
Materials PE / AISI316 / EPDM
Sealing EPDM
Suitable for installation pipe Ø 75mm
Installation by Flexible Couplings (between pipes)
Horizontal opening pressure 159 mm H2O
Horizontal closing pressure 104 mm H2O
Sold per Piece
Stock item On request
Accessories available Please see below

Downloads

Technical datasheet

Related products

ROwat-MWstop® Stainless Steel - Inline Check Valve

5 MwC - On Seating Pressure

Product: ROwat-MWstop® Stainless Steel
Materials: AISI316 / EPDM

Read more

ROwat-MWstop® Flange

Product: ROwat-MWstop® Flange
Materials: AISI316

Read more

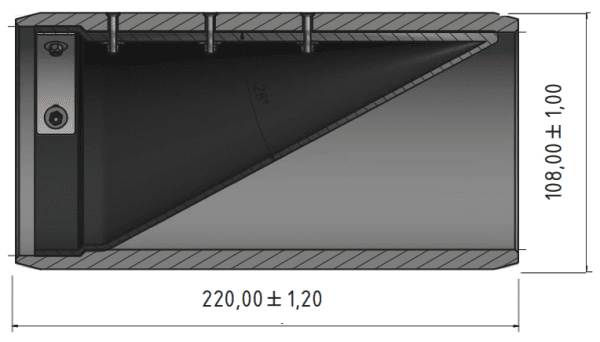

Features & Benefits: ROwat-MWstop® PE - Ø 110mm

ROwat-MWstop® is an Inline Check Valve which distinguish itself by its unique membrane and PE body.

The ROwat-MWstop® backwater valve reliably protects infrastructures or buildings from Flooding and. The integrated membrane reliably closes the pipe leading to the property in the event of backwater flow during for example heavy weather events or failure of the pumped outflow.

The ROwat-MWstop® PE is suitable to be installed both horizontal and vertical in, Sewage Systems, WWTP’s, Housing, Apartment buildings and can be used as a stink shield as well.

This results that the ROwat-MWstop® has been proven its reliability and durability successfully for many years in projects all over the world.

Product Group Inline Check Valves
Product Name ROwat-MWstop®
Materials PE / AISI316 / EPDM
Sealing EPDM
Suitable for installation pipe Ø 110mm
Installation by Flexible Couplings (between pipes)
Horizontal opening pressure 169 mm H2O
Horizontal closing pressure   84 mm H2O
Sold per Piece
Stock item On request
Accessories available Please see below

Downloads

Technical datasheet

Related products

ROwat-MWstop® Stainless Steel - Inline Check Valve

5 MwC - On Seating Pressure

Product: ROwat-MWstop® Stainless Steel
Materials: AISI316 / EPDM

Read more

ROwat-MWstop® Flange

Product: ROwat-MWstop® Flange
Materials: AISI316

Read more

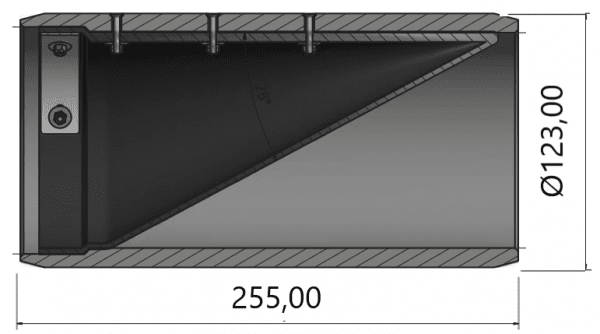

Features & Benefits: ROwat-MWstop® PE - Ø 125mm

ROwat-MWstop® is an Inline Check Valve which distinguish itself by its unique membrane and PE body.

The ROwat-MWstop® backwater valve reliably protects infrastructures or buildings from Flooding and. The integrated membrane reliably closes the pipe leading to the property in the event of backwater flow during for example heavy weather events or failure of the pumped outflow.

The ROwat-MWstop® PE is suitable to be installed both horizontal and vertical in, Sewage Systems, WWTP’s, Housing, Apartment buildings and can be used as a stink shield as well.

This results that the ROwat-MWstop® has been proven its reliability and durability successfully for many years in projects all over the world.

Product Group Inline Check Valves
Product Name ROwat-MWstop®
Materials PE / AISI316 / EPDM
Sealing EPDM
Suitable for installation pipe Ø 125mm
Installation by Flexible Couplings (between pipes)
Horizontal opening pressure 179 mm H2O
Horizontal closing pressure    79 mm H2O
Sold per Piece
Stock item On request
Accessories available Please see below

Downloads

Technical datasheet

Related products

ROwat-MWstop® Stainless Steel - Inline Check Valve

5 MwC - On Seating Pressure

Product: ROwat-MWstop® Stainless Steel
Materials: AISI316 / EPDM

Read more

ROwat-MWstop® Flange

Product: ROwat-MWstop® Flange
Materials: AISI316

Read more

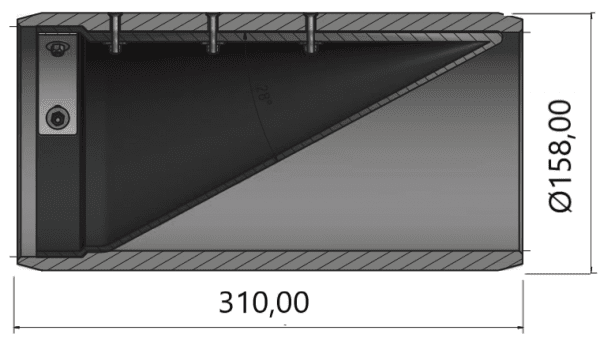

Features & Benefits: ROwat-MWstop® PE - Ø 160mm

ROwat-MWstop® is an Inline Check Valve which distinguish itself by its unique membrane and PE body.

The ROwat-MWstop® backwater valve reliably protects infrastructures or buildings from Flooding and. The integrated membrane reliably closes the pipe leading to the property in the event of backwater flow during for example heavy weather events or failure of the pumped outflow.

The ROwat-MWstop® PE is suitable to be installed both horizontal and vertical in, Sewage Systems, WWTP’s, Housing, Apartment buildings and can be used as a stink shield as well.

This results that the ROwat-MWstop® has been proven its reliability and durability successfully for many years in projects all over the world.

Product Group Inline Check Valves
Product Name ROwat-MWstop®
Materials PE / AISI316 / EPDM
Sealing EPDM
Suitable for installation pipe Ø 160mm
Installation by Flexible Couplings (between pipes)
Horizontal opening pressure 179 mm H2O
Horizontal closing pressure 114 mm H2O
Sold per Piece
Stock item On request
Accessories available Please see below

Downloads

Technical datasheet

Related products

ROwat-MWstop® Stainless Steel - Inline Check Valve

5 MwC - On Seating Pressure

Product: ROwat-MWstop® Stainless Steel
Materials: AISI316 / EPDM

Read more

ROwat-MWstop® Flange

Product: ROwat-MWstop® Flange
Materials: AISI316

Read more

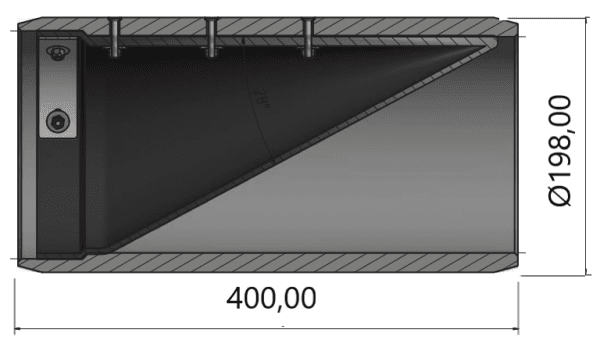

Features & Benefits: ROwat-MWstop® PE - Ø 200mm

ROwat-MWstop® is an Inline Check Valve which distinguish itself by its unique membrane and PE body.

The ROwat-MWstop® backwater valve reliably protects infrastructures or buildings from Flooding and. The integrated membrane reliably closes the pipe leading to the property in the event of backwater flow during for example heavy weather events or failure of the pumped outflow.

The ROwat-MWstop® PE is suitable to be installed both horizontal and vertical in, Sewage Systems, WWTP’s, Housing, Apartment buildings and can be used as a stink shield as well.

This results that the ROwat-MWstop® has been proven its reliability and durability successfully for many years in projects all over the world.

Product Group Inline Check Valves
Product Name ROwat-MWstop®
Materials PE / AISI316 / EPDM
Sealing EPDM
Suitable for installation pipe Ø 160mm
Installation by Flexible Couplings (between pipes)
Horizontal opening pressure 199 mm H2O
Horizontal closing pressure 104 mm H2O
Sold per Piece
Stock item On request
Accessories available Please see below

Downloads

Technical datasheet
