ROwat-MWstop® Stainless Steel - Inline Check Valve
Inline Check Valves

ROwat-MWstop® Stainless Steel - Inline Check Valve

5 MwC - On Seating Pressure

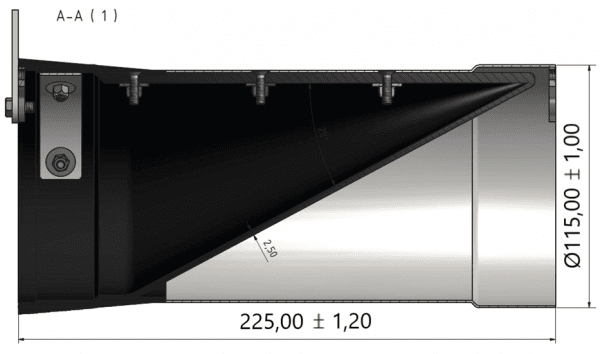

Article number MW116-55-SS316
Productname ROwat-MWstop® Stainless Steel
Dimension Ø 0125mm
Materials AISI316 / EPDM
Inline Check Valves

ROwat-MWstop® Stainless Steel - Inline Check Valve

5 MwC - On Seating Pressure

Article number MW146-55-SS316
Productname ROwat-MWstop® Stainless Steel
Dimension Ø 0150mm
Materials AIS316 / EPDM
Inline Check Valves

ROwat-MWstop® Stainless Steel - Inline Check Valve

5 MwC - On Seating Pressure

Article number MW181-55-SS316
Productname ROwat-MWstop® Stainless Steel
Dimension Ø 0200mm
Materials AISI316 / EPDM
Inline Check Valves

ROwat-MWstop® Stainless Steel - Inline Check Valve

5 MwC - On Seating Pressure

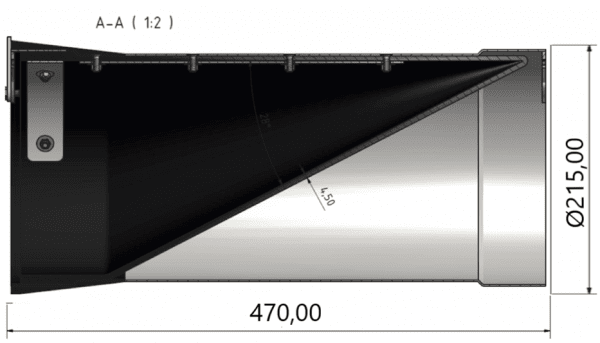

Article number MW215-55-SS316
Productname ROwat-MWstop® Stainless Steel
Dimension Ø 0225mm
Materials AISI316 / EPDM
Inline Check Valves

ROwat-MWstop® Stainless Steel - Inline Check Valve

5 MwC - On Seating Pressure

Article number MW230-55-SS316
Productname ROwat-MWstop® Stainless Steel
Dimension Ø 0250_230mm
Materials AISI316 / EPDM
Inline Check Valves

ROwat-MWstop® Stainless Steel - Inline Check Valve

5 MwC - On Seating Pressure

Article number MW240-55-SS316
Productname ROwat-MWstop® Stainless Steel
Dimension Ø 0250_240mm
Materials AISI316 / EPDM
Inline Check Valves

ROwat-MWstop® Stainless Steel - Inline Check Valve

5 MwC - On Seating Pressure

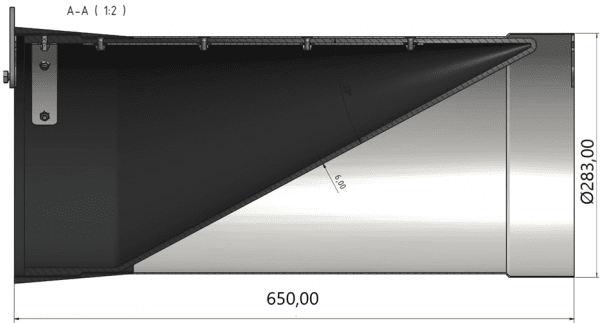

Article number MW283-55-SS316
Productname ROwat-MWstop® Stainless Steel
Dimension Ø 0300_283mm
Materials AISI316 / EPDM
Inline Check Valves

ROwat-MWstop® Stainless Steel - Inline Check Valve

5 MwC - On Seating Pressure

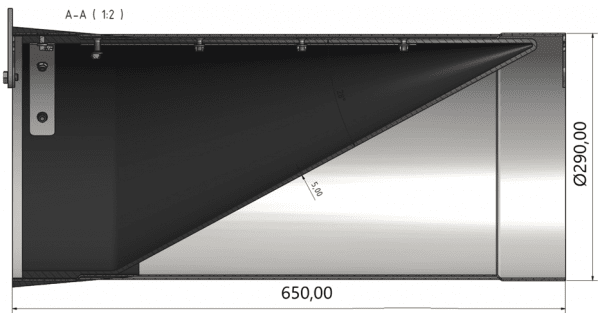

Article number MW290-55-SS316
Productname ROwat-MWstop® Stainless Steel
Dimension Ø 0300_290mm
Materials AIS316 / EPDM
Inline Check Valves

ROwat-MWstop® Stainless Steel - Inline Check Valve

5 MwC - On Seating Pressure

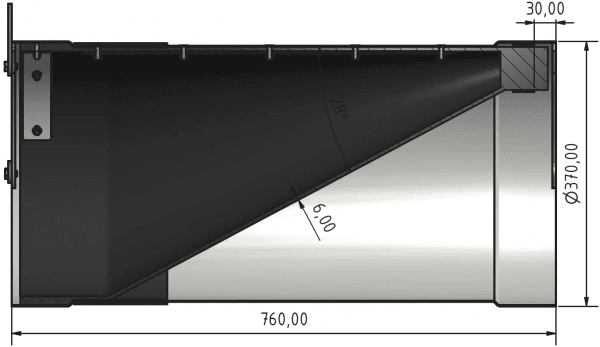

Article number MW370-55-SS316
Productname ROwat-MWstop® Stainless Steel
Dimension Ø 0400_370mm
Materials AISI316 / EPDM
Inline Check Valves

ROwat-MWstop® Stainless Steel - Inline Check Valve

5 MwC - On Seating Pressure

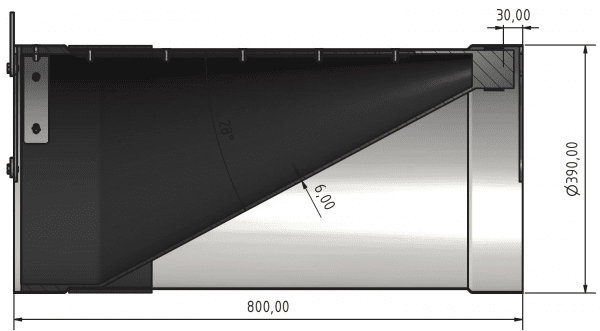

Article number MW390-55-SS316
Productname ROwat-MWstop® Stainless Steel
Dimension Ø 0400_390mm
Materials AISI316 / EPDM
Inline Check Valves

ROwat-MWstop® Stainless Steel - Inline Check Valve

5 MwC - On Seating Pressure

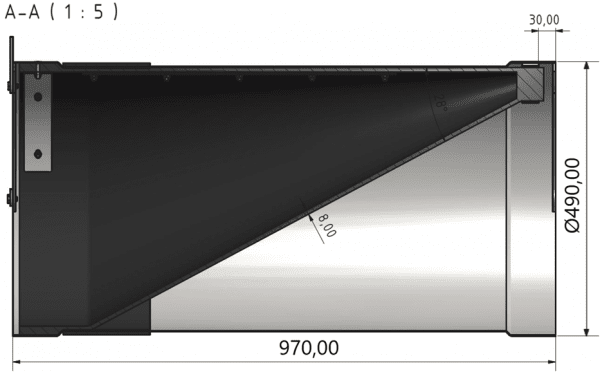

Article number MW490-55-SS316
Productname ROwat-MWstop® Stainless Steel
Dimension Ø 0500mm
Materials AISI316 / EPDM
Inline Check Valves

ROwat-MWstop® Stainless Steel - Inline Check Valve

5 MwC - On Seating Pressure

Article number MW590-55-SS316
Productname ROwat-MWstop® Stainless Steel
Dimension Ø 0600mm
Materials AISI316 / EPDM
Inline Check Valves

ROwat-MWstop® Stainless Steel - Inline Check Valve

5 MwC - On Seating Pressure

Article number MW690-55-SSI316
Productname ROwat-MWstop® Stainless Steel
Dimension Ø 0700mm
Materials AISI316 / EPDM
Inline Check Valves

ROwat-MWstop® Stainless Steel - Inline Check Valve

5 MwC - On Seating Pressure

Article number MW790-55-SS316
Productname ROwat-MWstop® Stainless Steel
Dimension Ø 0800mm
Materials AISI316 / EPDM
Inline Check Valves

ROwat-MWstop® Stainless Steel - Inline Check Valve

5 MwC - On Seating Pressure

Article number MW885-55-SS316
Productname ROwat-MWstop® Stainless Steel
Dimension Ø 0900mm
Materials AISI316 / EPDM
Inline Check Valves

ROwat-MWstop® Stainless Steel - Inline Check Valve

5 MwC - On Seating Pressure

Article number MW985-55-SS316
Productname ROwat-MWstop® Stainless Steel
Dimension Ø 1000mm
Materials HDPE / AIS316 / EPDM
Size

Features & Benefits: ROwat-MWstop® Stainless Steel - Inline Check Valve - Ø 0125mm

ROwat-MWstop® is an Inline Check Valve which distinguish itself by its unique membrane and Stainless Steel 316 body.

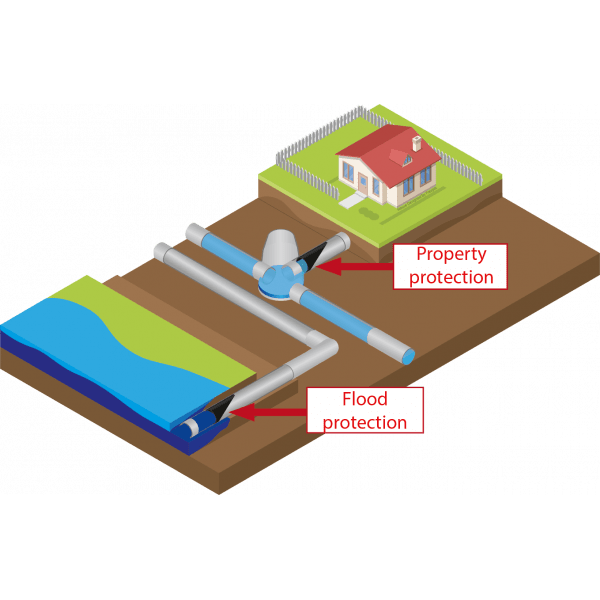

The ROwat-MWstop®  backwater valve reliably protects infrastructures or buildings from high water levels, Flooding and Overflow. The integrated membrane reliably closes the pipe leading tot the property in the event of backwater flow during for example heavy weather events or failure of the pumping station.

Due to it’s unique design, the ROwat-MWstop®  is being able to always discharge water out of the pipesystem with a minimum headloss, even with a higher backpressure when comparing to traditional Valves in the market.

The ROwat-MWstop®  is suitable to be installed in, Sewage Systems, WWTP’s, Pumping Stations, Stormwater Discharge systems, Harbors and has been proven it’s durability and reliability for many years in projects all over the world.

Product Group Inline Check Valves
Product Name ROwat-MWstop®
Materials AISI316 / EPDM
Sealing EPDM
Suitable for installation pipe Ø 116 - 124mm
Installation by Inside Pipe
Horizontal opening pressure 174 mm H2O
Horizontal closing pressure 109 mm H2O
Sold per Piece
Stock item On request
Accessories available Please see below

Downloads

Technical datasheet

Related products

ROwat-MWstop® PE

5 MwC - On Seating Pressure

Product: ROwat-MWstop® PE
Materials: HDPE / AISI316 / EPDM

Read more

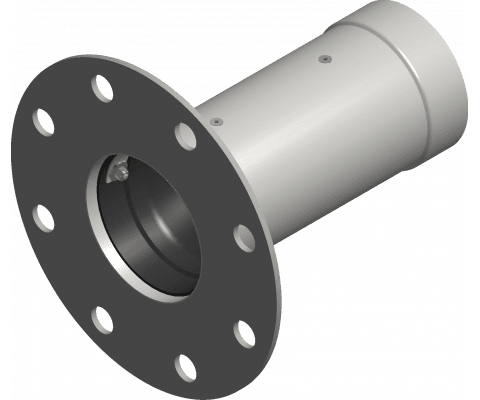

ROwat-MWstop® Flange

Product: ROwat-MWstop® Flange
Materials: AISI316

Read more

Features & Benefits: ROwat-MWstop® Stainless Steel - Inline Check Valve - Ø 0150mm

ROwat-MWstop® is an Inline Check Valve which distinguish itself by its unique membrane and Stainless Steel 316 body.

The ROwat-MWstop®  backwater valve reliably protects infrastructures or buildings from high water levels, Flooding and Overflow. The integrated membrane reliably closes the pipe leading tot the property in the event of backwater flow during for example heavy weather events or failure of the pumping station.

Due to it’s unique design, the ROwat-MWstop®  is being able to always discharge water out of the pipesystem with a minimum headloss, even with a higher backpressure when comparing to traditional Valves in the market.

The ROwat-MWstop®  is suitable to be installed in, Sewage Systems, WWTP’s, Pumping Stations, Stormwater Discharge systems, Harbors and has been proven it’s durability and reliability for many years in projects all over the world.

Product Group Inline Check Valves
Product Name ROwat-MWstop®
Materials AISI316 / EPDM
Sealing EPDM
Suitable for installation pipe Ø 145,5 - 158,5mm
Installation by Inside Pipe
Horizontal opening pressure 204 mm H2O
Horizontal closing pressure   89 mm H2O
Sold per Piece
Stock item On request
Accessories available Please see below

Downloads

Technical datasheet

Related products

ROwat-MWstop® PE

5 MwC - On Seating Pressure

Product: ROwat-MWstop® PE
Materials: HDPE / AISI316 / EPDM

Read more

ROwat-MWstop® Flange

Product: ROwat-MWstop® Flange
Materials: AISI316

Read more

Features & Benefits: ROwat-MWstop® Stainless Steel - Inline Check Valve - Ø 0200mm

ROwat-MWstop® is an Inline Check Valve which distinguish itself by its unique membrane and Stainless Steel 316 body.

The ROwat-MWstop®  backwater valve reliably protects infrastructures or buildings from high water levels, Flooding and Overflow. The integrated membrane reliably closes the pipe leading tot the property in the event of backwater flow during for example heavy weather events or failure of the pumping station.

Due to it’s unique design, the ROwat-MWstop®  is being able to always discharge water out of the pipesystem with a minimum headloss, even with a higher backpressure when comparing to traditional Valves in the market.

The ROwat-MWstop®  is suitable to be installed in, Sewage Systems, WWTP’s, Pumping Stations, Stormwater Discharge systems, Harbors and has been proven it’s durability and reliability for many years in projects all over the world.

Product Group Inline Check Valves
Product Name ROwat-MWstop®
Materials AISI316 / EPDM
Sealing EPDM
Suitable for installation pipe Ø 182 - 199mm
Installation by Inside Pipe
Horizontal opening pressure 304 mm H2O
Horizontal closing pressure 139 mm H2O
Sold per Piece
Stock item On request
Accessories available Please see below

Downloads

Technical datasheet

Related products

ROwat-MWstop® PE

5 MwC - On Seating Pressure

Product: ROwat-MWstop® PE
Materials: HDPE / AISI316 / EPDM

Read more

ROwat-MWstop® Flange

Product: ROwat-MWstop® Flange
Materials: AISI316

Read more

Features & Benefits: ROwat-MWstop® Stainless Steel - Inline Check Valve - Ø 0225mm

ROwat-MWstop® is an Inline Check Valve which distinguish itself by its unique membrane and Stainless Steel 316 body.

The ROwat-MWstop®  backwater valve reliably protects infrastructures or buildings from high water levels, Flooding and Overflow. The integrated membrane reliably closes the pipe leading tot the property in the event of backwater flow during for example heavy weather events or failure of the pumping station.

Due to it’s unique design, the ROwat-MWstop®  is being able to always discharge water out of the pipesystem with a minimum headloss, even with a higher backpressure when comparing to traditional Valves in the market.

The ROwat-MWstop®  is suitable to be installed in, Sewage Systems, WWTP’s, Pumping Stations, Stormwater Discharge systems, Harbors and has been proven it’s durability and reliability for many years in projects all over the world.

Product Group Inline Check Valves
Product Name ROwat-MWstop®
Materials AISI316 / EPDM
Sealing EPDM
Suitable for installation pipe Ø 216 - 233mm
Installation by Inside Pipe
Horizontal opening pressure 204 mm H2O
Horizontal closing pressure 134 mm H2O
Sold per Piece
Stock item On request
Accessories available Please see below

Downloads

Technical datasheet

Related products

ROwat-MWstop® PE

5 MwC - On Seating Pressure

Product: ROwat-MWstop® PE
Materials: HDPE / AISI316 / EPDM

Read more

ROwat-MWstop® Flange

Product: ROwat-MWstop® Flange
Materials: AISI316

Read more

Features & Benefits: ROwat-MWstop® Stainless Steel - Inline Check Valve - Ø 0250_230mm

ROwat-MWstop® is an Inline Check Valve which distinguish itself by its unique membrane and Stainless Steel 316 body.

The ROwat-MWstop®  backwater valve reliably protects infrastructures or buildings from high water levels, Flooding and Overflow. The integrated membrane reliably closes the pipe leading tot the property in the event of backwater flow during for example heavy weather events or failure of the pumping station.

Due to it’s unique design, the ROwat-MWstop®  is being able to always discharge water out of the pipesystem with a minimum headloss, even with a higher backpressure when comparing to traditional Valves in the market.

The ROwat-MWstop®  is suitable to be installed in, Sewage Systems, WWTP’s, Pumping Stations, Stormwater Discharge systems, Harbors and has been proven it’s durability and reliability for many years in projects all over the world.

Product Group Inline Check Valves
Product Name ROwat-MWstop®
Materials AIS316 / EPDM
Sealing EPDM
Suitable for installation pipe Ø 231 - 252mm
Installation by Inside Pipe
Horizontal opening pressure 204 mm H2O
Horizontal closing pressure 134 mm H2O
Sold per Piece
Stock item On request
Accessories available Please see below

Downloads

Technical datasheet

Related products

ROwat-MWstop® PE

5 MwC - On Seating Pressure

Product: ROwat-MWstop® PE
Materials: HDPE / AISI316 / EPDM

Read more

ROwat-MWstop® Flange

Product: ROwat-MWstop® Flange
Materials: AISI316

Read more

Features & Benefits: ROwat-MWstop® Stainless Steel - Inline Check Valve - Ø 0250_240mm

ROwat-MWstop® is an Inline Check Valve which distinguish itself by its unique membrane and Stainless Steel 316 body.

The ROwat-MWstop®  backwater valve reliably protects infrastructures or buildings from high water levels, Flooding and Overflow. The integrated membrane reliably closes the pipe leading tot the property in the event of backwater flow during for example heavy weather events or failure of the pumping station.

Due to it’s unique design, the ROwat-MWstop®  is being able to always discharge water out of the pipesystem with a minimum headloss, even with a higher backpressure when comparing to traditional Valves in the market.

The ROwat-MWstop®  is suitable to be installed in, Sewage Systems, WWTP’s, Pumping Stations, Stormwater Discharge systems, Harbors and has been proven it’s durability and reliability for many years in projects all over the world.

Product Group Inline Check Valves
Product Name ROwat-MWstop®
Materials AIS316 / EPDM
Sealing EPDM
Suitable for installation pipe Ø 241 - 258mm
Installation by Inside Pipe
Horizontal opening pressure 175 mm H2O
Horizontal closing pressure 110 mm H2O
Sold per Piece
Stock item On request
Accessories available Please see below

Downloads

Technical datasheet

Related products

ROwat-MWstop® PE

5 MwC - On Seating Pressure

Product: ROwat-MWstop® PE
Materials: HDPE / AISI316 / EPDM

Read more

ROwat-MWstop® Flange

Product: ROwat-MWstop® Flange
Materials: AISI316

Read more

Features & Benefits: ROwat-MWstop® Stainless Steel - Inline Check Valve - Ø 0300_283mm

ROwat-MWstop® is an Inline Check Valve which distinguish itself by its unique membrane and Stainless Steel 316 body.

The ROwat-MWstop®  backwater valve reliably protects infrastructures or buildings from high water levels, Flooding and Overflow. The integrated membrane reliably closes the pipe leading tot the property in the event of backwater flow during for example heavy weather events or failure of the pumping station.

Due to it’s unique design, the ROwat-MWstop®  is being able to always discharge water out of the pipesystem with a minimum headloss, even with a higher backpressure when comparing to traditional Valves in the market.

The ROwat-MWstop®  is suitable to be installed in, Sewage Systems, WWTP’s, Pumping Stations, Stormwater Discharge systems, Harbors and has been proven it’s durability and reliability for many years in projects all over the world.

Product Group Inline Check Valves
Product Name ROwat-MWstop®
Materials AISI316 / EPDM
Sealing EPDM
Suitable for installation pipe Ø 284 - 301mm
Installation by Inside Pipe
Horizontal opening pressure 209 mm H2O
Horizontal closing pressure 114 mm H2O
Sold per Piece
Stock item On request
Accessories available Please see below

Downloads

Technical datasheet

Related products

ROwat-MWstop® PE

5 MwC - On Seating Pressure

Product: ROwat-MWstop® PE
Materials: HDPE / AISI316 / EPDM

Read more

ROwat-MWstop® Flange

Product: ROwat-MWstop® Flange
Materials: AISI316

Read more

Features & Benefits: ROwat-MWstop® Stainless Steel - Inline Check Valve - Ø 0300_290mm

ROwat-MWstop® is an Inline Check Valve which distinguish itself by its unique membrane and Stainless Steel 316 body.

The ROwat-MWstop®  backwater valve reliably protects infrastructures or buildings from high water levels, Flooding and Overflow. The integrated membrane reliably closes the pipe leading tot the property in the event of backwater flow during for example heavy weather events or failure of the pumping station.

Due to it’s unique design, the ROwat-MWstop®  is being able to always discharge water out of the pipesystem with a minimum headloss, even with a higher backpressure when comparing to traditional Valves in the market.

The ROwat-MWstop®  is suitable to be installed in, Sewage Systems, WWTP’s, Pumping Stations, Stormwater Discharge systems, Harbors and has been proven it’s durability and reliability for many years in projects all over the world.

Product Group Inline Check Valves
Product Name ROwat-MWstop®
Materials AISI316 / EPDM
Sealing EPDM
Suitable for installation pipe Ø 291 - 308mm
Installation by Inside Pipe
Horizontal opening pressure 214 mm H2O
Horizontal closing pressure 164 mm H2O
Sold per Piece
Stock item On request
Accessories available Please see below

Downloads

Technical datasheet

Related products

ROwat-MWstop® PE

5 MwC - On Seating Pressure

Product: ROwat-MWstop® PE
Materials: HDPE / AISI316 / EPDM

Read more

ROwat-MWstop® Flange

Product: ROwat-MWstop® Flange
Materials: AISI316

Read more

Features & Benefits: ROwat-MWstop® Stainless Steel - Inline Check Valve - Ø 0400_370mm

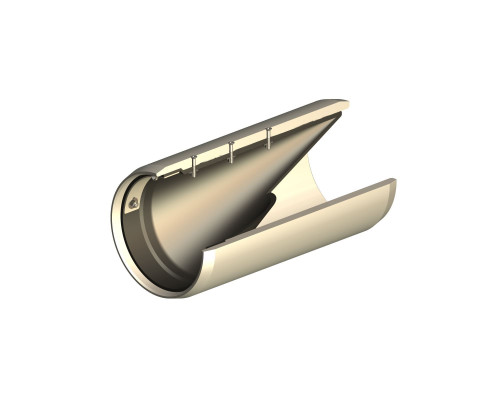

ROwat-MWstop® is an Inline Check Valve which distinguish itself by its unique membrane and Stainless Steel 316 body.

The ROwat-MWstop®  backwater valve reliably protects infrastructures or buildings from high water levels, Flooding and Overflow. The integrated membrane reliably closes the pipe leading tot the property in the event of backwater flow during for example heavy weather events or failure of the pumping station.

Due to it’s unique design, the ROwat-MWstop®  is being able to always discharge water out of the pipesystem with a minimum headloss, even with a higher backpressure when comparing to traditional Valves in the market.

The ROwat-MWstop®  is suitable to be installed in, Sewage Systems, WWTP’s, Pumping Stations, Stormwater Discharge systems, Harbors and has been proven it’s durability and reliability for many years in projects all over the world.

Product Group Inline Check Valves
Product Name ROwat-MWstop®
Materials AISI316 / EPDM
Sealing EPDM
Suitable for installation pipe Ø 371 - 392mm
Installation by Inside Pipe
Horizontal opening pressure 214 mm H2O
Horizontal closing pressure 164 mm H2O
Sold per Piece
Stock item On request
Accessories available Please see below

Downloads

Technical datasheet

Related products

ROwat-MWstop® PE

5 MwC - On Seating Pressure

Product: ROwat-MWstop® PE
Materials: HDPE / AISI316 / EPDM

Read more

ROwat-MWstop® Flange

Product: ROwat-MWstop® Flange
Materials: AISI316

Read more

Features & Benefits: ROwat-MWstop® Stainless Steel - Inline Check Valve - Ø 0400_390mm

ROwat-MWstop® is an Inline Check Valve which distinguish itself by its unique membrane and Stainless Steel 316 body.

The ROwat-MWstop®  backwater valve reliably protects infrastructures or buildings from high water levels, Flooding and Overflow. The integrated membrane reliably closes the pipe leading tot the property in the event of backwater flow during for example heavy weather events or failure of the pumping station.

Due to it’s unique design, the ROwat-MWstop®  is being able to always discharge water out of the pipesystem with a minimum headloss, even with a higher backpressure when comparing to traditional Valves in the market.

The ROwat-MWstop®  is suitable to be installed in, Sewage Systems, WWTP’s, Pumping Stations, Stormwater Discharge systems, Harbors and has been proven it’s durability and reliability for many years in projects all over the world.

Product Group Inline Check Valves
Product Name ROwat-MWstop®
Materials AIS(316 / EPDM
Sealing EPDM
Suitable for installation pipe Ø 391 - 412mm
Installation by Inside Pipe
Horizontal opening pressure 314 mm H2O
Horizontal closing pressure 189 mm H2O
Sold per Piece
Stock item On request
Accessories available Please see below

Downloads

Technical datasheet

Related products

ROwat-MWstop® PE

5 MwC - On Seating Pressure

Product: ROwat-MWstop® PE
Materials: HDPE / AISI316 / EPDM

Read more

ROwat-MWstop® Flange

Product: ROwat-MWstop® Flange
Materials: AISI316

Read more

Features & Benefits: ROwat-MWstop® Stainless Steel - Inline Check Valve - Ø 0500mm

ROwat-MWstop® is an Inline Check Valve which distinguish itself by its unique membrane and Stainless Steel 316 body.

The ROwat-MWstop®  backwater valve reliably protects infrastructures or buildings from high water levels, Flooding and Overflow. The integrated membrane reliably closes the pipe leading tot the property in the event of backwater flow during for example heavy weather events or failure of the pumping station.

Due to it’s unique design, the ROwat-MWstop®  is being able to always discharge water out of the pipesystem with a minimum headloss, even with a higher backpressure when comparing to traditional Valves in the market.

The ROwat-MWstop®  is suitable to be installed in, Sewage Systems, WWTP’s, Pumping Stations, Stormwater Discharge systems, Harbors and has been proven it’s durability and reliability for many years in projects all over the world.

Product Group Inline Check Valves
Product Name ROwat-MWstop®
Materials AISI316 / EPDM
Sealing EPDM
Suitable for installation pipe Ø 491 - 504mm
Installation by Inside Pipe
Horizontal opening pressure 274 mm H2O
Horizontal closing pressure 184 mm H2O
Sold per Piece
Stock item On request
Accessories available Please see below

Downloads

Technical datasheet

Related products

ROwat-MWstop® PE

5 MwC - On Seating Pressure

Product: ROwat-MWstop® PE
Materials: HDPE / AISI316 / EPDM

Read more

ROwat-MWstop® Flange

Product: ROwat-MWstop® Flange
Materials: AISI316

Read more

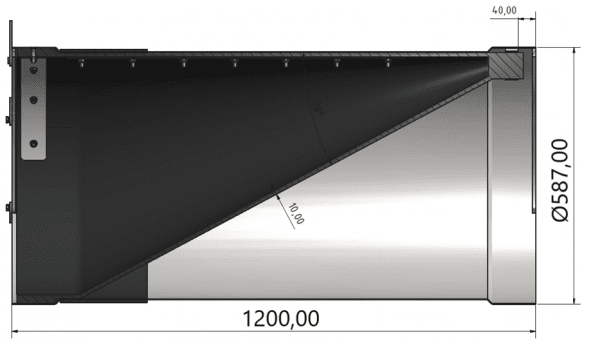

Features & Benefits: ROwat-MWstop® Stainless Steel - Inline Check Valve - Ø 0600mm

ROwat-MWstop® is an Inline Check Valve which distinguish itself by its unique membrane and Stainless Steel 316 body.

The ROwat-MWstop®  backwater valve reliably protects infrastructures or buildings from high water levels, Flooding and Overflow. The integrated membrane reliably closes the pipe leading tot the property in the event of backwater flow during for example heavy weather events or failure of the pumping station.

Due to it’s unique design, the ROwat-MWstop®  is being able to always discharge water out of the pipesystem with a minimum headloss, even with a higher backpressure when comparing to traditional Valves in the market.

The ROwat-MWstop®  is suitable to be installed in, Sewage Systems, WWTP’s, Pumping Stations, Stormwater Discharge systems, Harbors and has been proven it’s durability and reliability for many years in projects all over the world.

Product Group Inline Check Valves
Product Name ROwat-MWstop®
Materials AISI316 / EPDM
Sealing EPDM
Suitable for installation pipe Ø 588 - 597mm
Installation by Inside Pipe
Horizontal opening pressure 344 mm H2O
Horizontal closing pressure 219 mm H2O
Sold per Piece
Stock item On request
Accessories available Please see below

Downloads

Technical datasheet

Related products

ROwat-MWstop® PE

5 MwC - On Seating Pressure

Product: ROwat-MWstop® PE
Materials: HDPE / AISI316 / EPDM

Read more

ROwat-MWstop® Flange

Product: ROwat-MWstop® Flange
Materials: AISI316

Read more

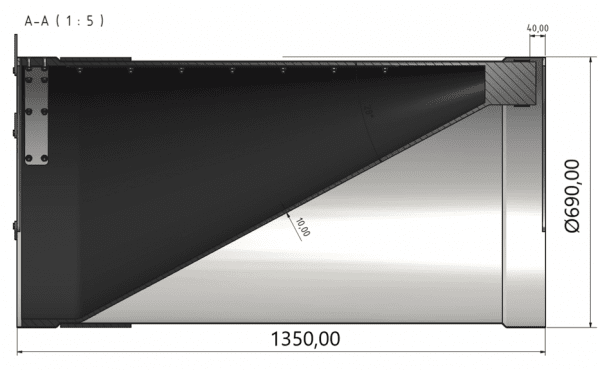

Features & Benefits: ROwat-MWstop® Stainless Steel - Inline Check Valve - Ø 0700mm

ROwat-MWstop® is an Inline Check Valve which distinguish itself by its unique membrane and Stainless Steel 316 body.

The ROwat-MWstop®  backwater valve reliably protects infrastructures or buildings from high water levels, Flooding and Overflow. The integrated membrane reliably closes the pipe leading tot the property in the event of backwater flow during for example heavy weather events or failure of the pumping station.

Due to it’s unique design, the ROwat-MWstop®  is being able to always discharge water out of the pipesystem with a minimum headloss, even with a higher backpressure when comparing to traditional Valves in the market.

The ROwat-MWstop®  is suitable to be installed in, Sewage Systems, WWTP’s, Pumping Stations, Stormwater Discharge systems, Harbors and has been proven it’s durability and reliability for many years in projects all over the world.

Product Group Inline Check Valves
Product Name ROwat-MWstop®
Materials AISI316 / EPDM
Sealing EPDM
Suitable for installation pipe Ø 691 - 708mm
Installation by Inside Pipe
Horizontal opening pressure 340 mm H2O
Horizontal closing pressure 219 mm H2O
Sold per Piece
Stock item On request
Accessories available Please see below

Downloads

Technical datasheet

Related products

ROwat-MWstop® PE

5 MwC - On Seating Pressure

Product: ROwat-MWstop® PE
Materials: HDPE / AISI316 / EPDM

Read more

ROwat-MWstop® Flange

Product: ROwat-MWstop® Flange
Materials: AISI316

Read more

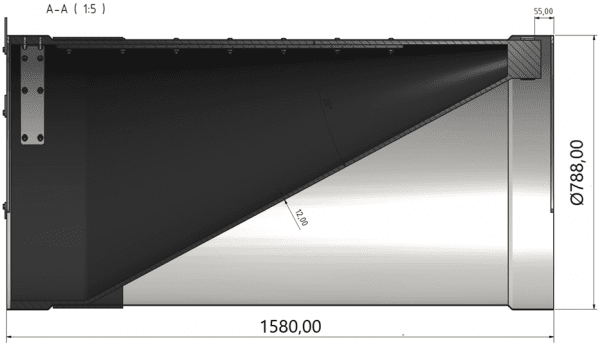

Features & Benefits: ROwat-MWstop® Stainless Steel - Inline Check Valve - Ø 0800mm

ROwat-MWstop® is an Inline Check Valve which distinguish itself by its unique membrane and Stainless Steel 316 body.

The ROwat-MWstop®  backwater valve reliably protects infrastructures or buildings from high water levels, Flooding and Overflow. The integrated membrane reliably closes the pipe leading tot the property in the event of backwater flow during for example heavy weather events or failure of the pumping station.

Due to it’s unique design, the ROwat-MWstop®  is being able to always discharge water out of the pipesystem with a minimum headloss, even with a higher backpressure when comparing to traditional Valves in the market.

The ROwat-MWstop®  is suitable to be installed in, Sewage Systems, WWTP’s, Pumping Stations, Stormwater Discharge systems, Harbors and has been proven it’s durability and reliability for many years in projects all over the world.

Product Group Inline Check Valves
Product Name ROwat-MWstop®
Materials AISI316 / EPDM
Sealing EPDM
Suitable for installation pipe Ø 791 - 808mm
Installation by Inside Pipe
Horizontal opening pressure 359 mm H2O
Horizontal closing pressure 234 mm H2O
Sold per Piece
Stock item On request
Accessories available Please see below

Downloads

Technical datasheet

Related products

ROwat-MWstop® PE

5 MwC - On Seating Pressure

Product: ROwat-MWstop® PE
Materials: HDPE / AISI316 / EPDM

Read more

ROwat-MWstop® Flange

Product: ROwat-MWstop® Flange
Materials: AISI316

Read more

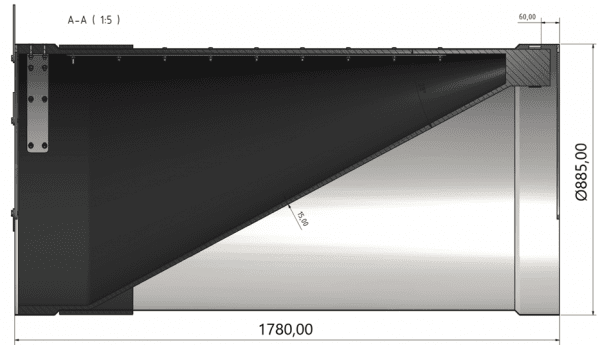

Features & Benefits: ROwat-MWstop® Stainless Steel - Inline Check Valve - Ø 0900mm

ROwat-MWstop® is an Inline Check Valve which distinguish itself by its unique membrane and Stainless Steel 316 body.

The ROwat-MWstop®  backwater valve reliably protects infrastructures or buildings from high water levels, Flooding and Overflow. The integrated membrane reliably closes the pipe leading tot the property in the event of backwater flow during for example heavy weather events or failure of the pumping station.

Due to it’s unique design, the ROwat-MWstop®  is being able to always discharge water out of the pipesystem with a minimum headloss, even with a higher backpressure when comparing to traditional Valves in the market.

The ROwat-MWstop®  is suitable to be installed in, Sewage Systems, WWTP’s, Pumping Stations, Stormwater Discharge systems, Harbors and has been proven it’s durability and reliability for many years in projects all over the world.

Product Group Inline Check Valves
Product Name ROwat-MWstop®
Materials AISI316 / EPDM
Sealing EPDM
Suitable for installation pipe Ø 886 - 913mm
Installation by Inside Pipe
Horizontal opening pressure 409 mm H2O
Horizontal closing pressure 299 mm H2O
Sold per Piece
Stock item On request
Accessories available Please see below

Downloads

Technical datasheet

Related products

ROwat-MWstop® PE

5 MwC - On Seating Pressure

Product: ROwat-MWstop® PE
Materials: HDPE / AISI316 / EPDM

Read more

ROwat-MWstop® Flange

Product: ROwat-MWstop® Flange
Materials: AISI316

Read more

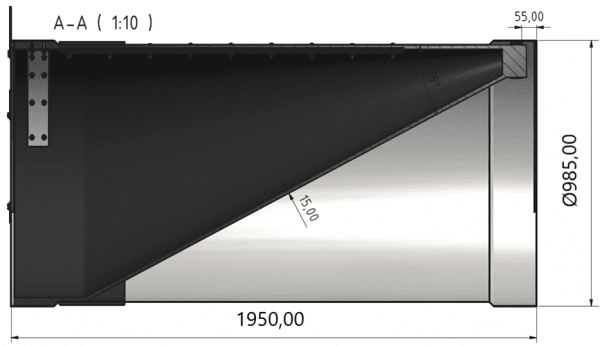

Features & Benefits: ROwat-MWstop® Stainless Steel - Inline Check Valve - Ø 1000mm

ROwat-MWstop® is an Inline Check Valve which distinguish itself by its unique membrane and Stainless Steel 316 body.

The ROwat-MWstop®  backwater valve reliably protects infrastructures or buildings from high water levels, Flooding and Overflow. The integrated membrane reliably closes the pipe leading tot the property in the event of backwater flow during for example heavy weather events or failure of the pumping station.

Due to it’s unique design, the ROwat-MWstop®  is being able to always discharge water out of the pipesystem with a minimum headloss, even with a higher backpressure when comparing to traditional Valves in the market.

The ROwat-MWstop®  is suitable to be installed in, Sewage Systems, WWTP’s, Pumping Stations, Stormwater Discharge systems, Harbors and has been proven it’s durability and reliability for many years in projects all over the world.

Product Group Inline Check Valves
Product Name ROwat-MWstop®
Materials AIS316 / EPDM
Sealing EPDM
Suitable for installation pipe Ø 986 - 1008mm
Installation by Inside Pipe
Horizontal opening pressure 379 mm H2O
Horizontal closing pressure 249 mm H2O
Sold per Piece
Stock item On request
Accessories available Please see below

Downloads

Technical datasheet

Related products

ROwat-MWstop® PE

5 MwC - On Seating Pressure

Product: ROwat-MWstop® PE
Materials: HDPE / AISI316 / EPDM

Read more

ROwat-MWstop® Flange

Product: ROwat-MWstop® Flange
Materials: AISI316

Read more
