HDPE & Stainless Steel Wall Mounted Penstock
Penstocks

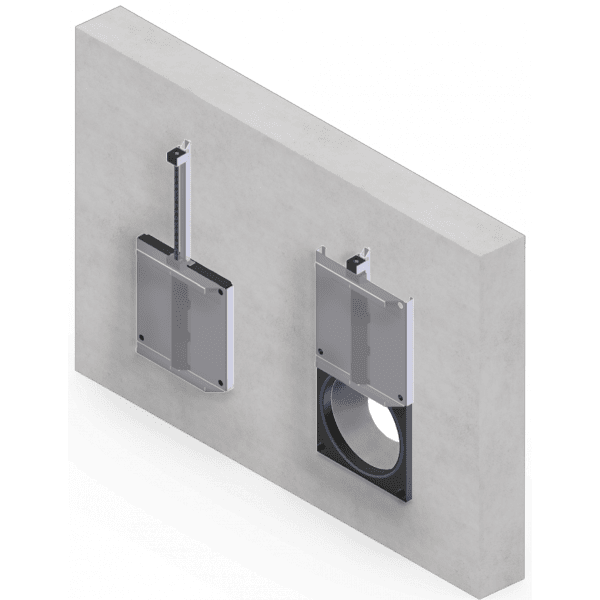

HDPE & Stainless Steel Wall Mounted Penstock

≤ 3 MwC, On/Off Seating Pressure

Article number RSA30150WA
Productname RSA 3 MwC
Dimension Ø 150mm
Materials HDPE / AISI316 / EPDM / POM
Penstocks

HDPE & Stainless Steel Wall Mounted Penstock

≤ 3 MwC, On/Off Seating Pressure

Article number RSA30200WA
Productname RSA 3 MwC
Dimension Ø 200mm
Materials HDPE / AISI316 / EPDM / POM
Penstocks

HDPE & Stainless Steel Wall Mounted Penstock

≤ 3 MwC, On/Off Seating Pressure

Article number RSA30250WA
Productname RSA 3 MwC
Dimension Ø 250mm
Materials HDPE / AISI316 / EPDM / POM
Penstocks

HDPE & Stainless Steel Wall Mounted Penstock

≤ 3 MwC, On/Off Seating Pressure

Article number RSA30300WA
Productname RSA 3 MwC
Dimension Ø 300mm
Materials HDPE / AISI316 / EPDM / POM
Penstocks

HDPE & Stainless Steel Wall Mounted Penstock

≤ 3 MwC, On/Off Seating Pressure

Article number RSA30400WA
Productname RSA 3 MwC
Dimension Ø 400mm
Materials HDPE / AISI316 / EPDM / POM
Penstocks

HDPE & Stainless Steel Wall Mounted Penstock

≤ 3 MwC, On/Off Seating Pressure

Article number RSA30500WA
Productname RSA 3 MwC
Dimension Ø 500mm
Materials HDPE / AISI316 / EPDM / POM
Size

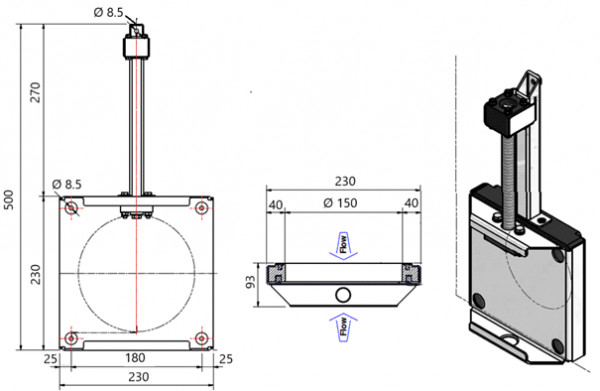

Features & Benefits: HDPE & Stainless Steel Wall Mounted Penstock - Ø 150mm

ROwat HDPE and Stainless Steel 316 Penstocks are being used to regulate the inlet and outlet side of Fluid Streams in for example Sewage Systems, Waste Water Treatment Plants or Wetlands.

By using HDPE and Stainless Steel 316 as our main product properties ROwat Penstocks are suitable to be installed in the most aggressive environments like Tropical Marine Inlets or Waste Water Treatment Plants.

In comparison with traditional used materials as Cast Iron and Steel our Penstocks are environmental friendly, durable and need low to zero maintenance while operating.

Our RSA 3 MwC Penstock is a compact On/Off Seating Penstock which can handle a waterpressure up to 3 MwC and is equipped with a fully Stainless Steel sliding door.



  • HDPE as main product property
  • Light weight compared to other materials like cast iron or coated steel,
  • High chemical resistance against salts, acids, alkalis, grease, etc.
  • UV protected
  • No coatings needed to protect the Penstock
  • Faster installation and Easy handling due to weight reduction
  • Lower torque to open en close the valve compared to others in the market
  • Long service life up to 50 years.
  • Constant working temperature: -30ºC to 50ºC
  • Low to no maintenance needed
Product group Penstocks
Product name RSA 3 MwC
Materials HDPE/AISI316/EPDM/POM
Sealing 4 Sided
Operation point 1/2 Moon
Spindle type Non Rising
Turns to Open/Close 31
Torque open/Close in NM 25
Weight in KG 6
Leakage rate DIN 19569-4 Class 4
Sold per Piece
Stock item Yes
Accessories available Please see below

Accessories

Related accessories for this product.

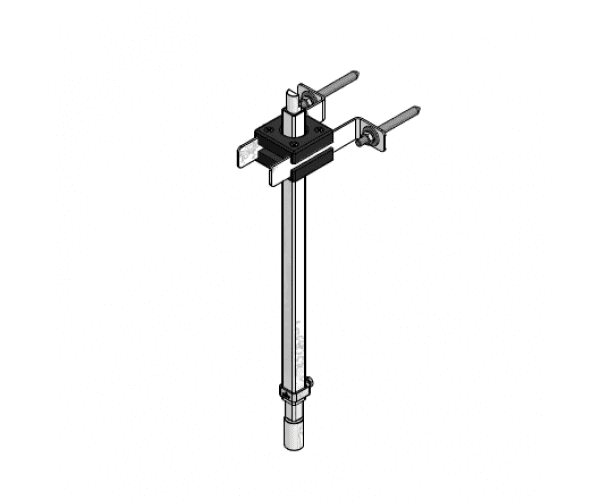

ROwat Spindle Extension Penstock

Operation point 1/2 moon

Product: Spindle Extension Penstock
Materials: AIS316 / HDPE

Read more

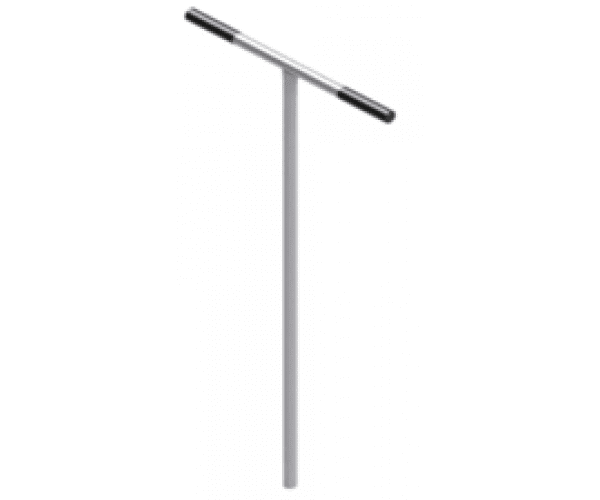

ROwat Operating Key

Operation point, 1/2 moon

Product: T-Key 1/2 moon
Materials: AIS316

Read more

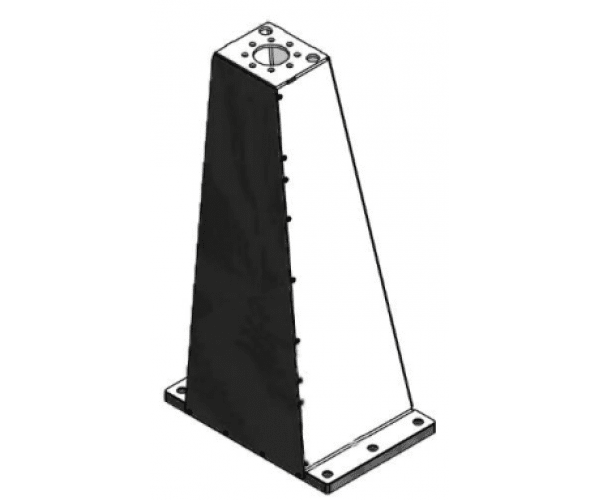

ROwat Headstock

900mm high

Product: ROwat Headstock
Materials: AISI304, HDPE

Read more
View all

Downloads

Technical datasheet

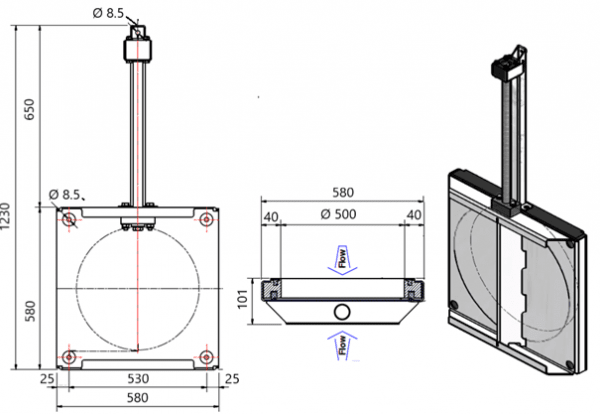

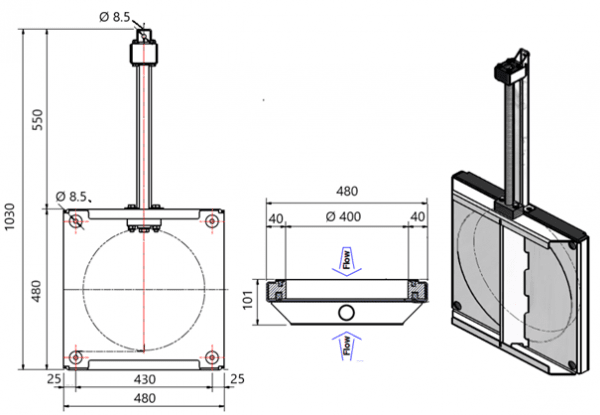

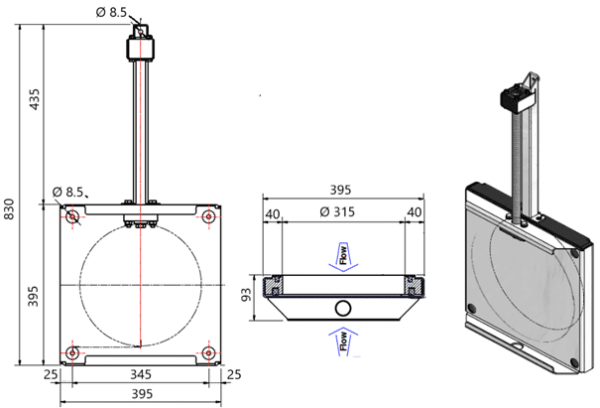

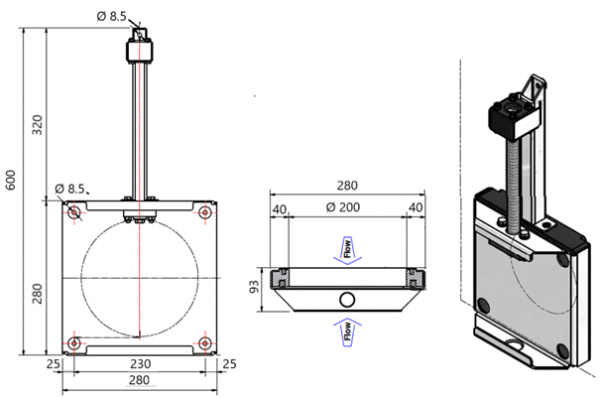

PDF Drawing

Related products

HDPE & Stainless Steel Wall Mounted Penstock

≤ 5 MwC, On/Off Seating Pressure

Product: RSA 5 MwC
Materials: HDPE/SS316/EDPM/POM

Read more

Features & Benefits: HDPE & Stainless Steel Wall Mounted Penstock - Ø 200mm

ROwat HDPE and Stainless Steel 316 Penstocks are being used to regulate the inlet and outlet side of Fluid Streams in for example Sewage Systems, Waste Water Treatment Plants or Wetlands.

By using HDPE and Stainless Steel 316 as our main product properties ROwat Penstocks are suitable to be installed in the most aggressive environments like Tropical Marine Inlets or Waste Water Treatment Plants.

In comparison with traditional used materials as Cast Iron and Steel our Penstocks are environmental friendly, durable and need low to zero maintenance while operating.

Our RSA 3 MwC Penstock is a compact On/Off Seating Penstock which can handle a waterpressure up to 3 MwC and is equipped with a fully Stainless Steel sliding door.



  • HDPE as main product property
  • Light weight compared to other materials like cast iron or coated steel,
  • High chemical resistance against salts, acids, alkalis, grease, etc.
  • UV protected
  • No coatings needed to protect the Penstock
  • Faster installation and Easy handling due to weight reduction
  • Lower torque to open en close the valve compared to others in the market
  • Long service life up to 50 years.
  • Constant working temperature: -30ºC to 50ºC
  • Low to no maintenance needed
Product group Penstocks
Product name RSA 3 MwC
Materials HDPE/AISI316/EPDM/POM
Sealing 4 Sided
Operation point 1/2 Moon
Spindle type Non Rising
Turns to Open/Close 40
Torque open/Close in NM 25
Weight in KG 7
Leakage rate DIN 19569-4 Class 4
Sold per Piece
Stock item Yes
Accessories available Please see below

Accessories

Related accessories for this product.

ROwat Spindle Extension Penstock

Operation point 1/2 moon

Product: Spindle Extension Penstock
Materials: AIS316 / HDPE

Read more

ROwat Operating Key

Operation point, 1/2 moon

Product: T-Key 1/2 moon
Materials: AIS316

Read more

ROwat Headstock

900mm high

Product: ROwat Headstock
Materials: AISI304, HDPE

Read more
View all

Downloads

Technical datasheet
PDF Drawing

Related products

HDPE & Stainless Steel Wall Mounted Penstock

≤ 5 MwC, On/Off Seating Pressure

Product: RSA 5 MwC
Materials: HDPE/SS316/EDPM/POM

Read more

Features & Benefits: HDPE & Stainless Steel Wall Mounted Penstock - Ø 250mm

ROwat HDPE and Stainless Steel 316 Penstocks are being used to regulate the inlet and outlet side of Fluid Streams in for example Sewage Systems, Waste Water Treatment Plants or Wetlands.

By using HDPE and Stainless Steel 316 as our main product properties ROwat Penstocks are suitable to be installed in the most aggressive environments like Tropical Marine Inlets or Waste Water Treatment Plants.

In comparison with traditional used materials as Cast Iron and Steel our Penstocks are environmental friendly, durable and need low to zero maintenance while operating.

Our RSA 3 MwC Penstock is a compact On/Off Seating Penstock which can handle a waterpressure up to 3 MwC and is equipped with a fully Stainless Steel sliding door.



  • HDPE as main product property
  • Light weight compared to other materials like cast iron or coated steel,
  • High chemical resistance against salts, acids, alkalis, grease, etc.
  • UV protected
  • No coatings needed to protect the Penstock
  • Faster installation and Easy handling due to weight reduction
  • Lower torque to open en close the valve compared to others in the market
  • Long service life up to 50 years.
  • Constant working temperature: -30ºC to 50ºC
  • Low to no maintenance needed
Product group Penstocks
Product name RSA 3 MwC
Materials HDPE/AISI316/EPDM/POM
Sealing 4 Sided
Operation point 1/2 Moon
Spindle type Non Rising
Turns to Open/Close 48
Torque open/Close in NM 25
Weight in KG 9
Leakage rate DIN 19569-4 Class 4
Sold per Piece
Stock item Yes
Accessories available Please see below

Accessories

Related accessories for this product.

ROwat Spindle Extension Penstock

Operation point 1/2 moon

Product: Spindle Extension Penstock
Materials: AIS316 / HDPE

Read more

ROwat Operating Key

Operation point, 1/2 moon

Product: T-Key 1/2 moon
Materials: AIS316

Read more

ROwat Headstock

900mm high

Product: ROwat Headstock
Materials: AISI304, HDPE

Read more
View all

Downloads

Technical datasheet
PDF Drawing

Related products

HDPE & Stainless Steel Wall Mounted Penstock

≤ 5 MwC, On/Off Seating Pressure

Product: RSA 5 MwC
Materials: HDPE/SS316/EDPM/POM

Read more

Features & Benefits: HDPE & Stainless Steel Wall Mounted Penstock - Ø 300mm

ROwat HDPE and Stainless Steel 316 Penstocks are being used to regulate the inlet and outlet side of Fluid Streams in for example Sewage Systems, Waste Water Treatment Plants or Wetlands.

By using HDPE and Stainless Steel 316 as our main product properties ROwat Penstocks are suitable to be installed in the most aggressive environments like Tropical Marine Inlets or Waste Water Treatment Plants.

In comparison with traditional used materials as Cast Iron and Steel our Penstocks are environmental friendly, durable and need low to zero maintenance while operating.

Our RSA 3 MwC Penstock is a compact On/Off Seating Penstock which can handle a waterpressure up to 3 MwC and is equipped with a fully Stainless Steel sliding door.



  • HDPE as main product property
  • Light weight compared to other materials like cast iron or coated steel,
  • High chemical resistance against salts, acids, alkalis, grease, etc.
  • UV protected
  • No coatings needed to protect the Penstock
  • Faster installation and Easy handling due to weight reduction
  • Lower torque to open en close the valve compared to others in the market
  • Long service life up to 50 years.
  • Constant working temperature: -30ºC to 50ºC
  • Low to no maintenance needed
Product group Penstocks
Product name RSA 3 MwC
Materials HDPE/AISI316/EPDM/POM
Sealing 4 Sided
Operation point 1/2 Moon
Spindle type Non Rising
Turns to Open/Close 56
Torque open/Close in NM 25
Weight in KG 11
Leakage rate DIN 19569-4 Class 4
Sold per Piece
Stock item Yes
Accessories available Please see below

Accessories

Related accessories for this product.

ROwat Spindle Extension Penstock

Operation point 1/2 moon

Product: Spindle Extension Penstock
Materials: AIS316 / HDPE

Read more

ROwat Operating Key

Operation point, 1/2 moon

Product: T-Key 1/2 moon
Materials: AIS316

Read more

ROwat Headstock

900mm high

Product: ROwat Headstock
Materials: AISI304, HDPE

Read more
View all

Downloads

Technical datasheet
PDF Drawing

Related products

HDPE & Stainless Steel Wall Mounted Penstock

≤ 5 MwC, On/Off Seating Pressure

Product: RSA 5 MwC
Materials: HDPE/SS316/EDPM/POM

Read more

Features & Benefits: HDPE & Stainless Steel Wall Mounted Penstock - Ø 400mm

ROwat HDPE and Stainless Steel 316 Penstocks are being used to regulate the inlet and outlet side of Fluid Streams in for example Sewage Systems, Waste Water Treatment Plants or Wetlands.

By using HDPE and Stainless Steel 316 as our main product properties ROwat Penstocks are suitable to be installed in the most aggressive environments like Tropical Marine Inlets or Waste Water Treatment Plants.

In comparison with traditional used materials as Cast Iron and Steel our Penstocks are environmental friendly, durable and need low to zero maintenance while operating.

Our RSA 3 MwC Penstock is a compact On/Off Seating Penstock which can handle a waterpressure up to 3 MwC and is equipped with a fully Stainless Steel sliding door.



  • HDPE as main product property
  • Light weight compared to other materials like cast iron or coated steel,
  • High chemical resistance against salts, acids, alkalis, grease, etc.
  • UV protected
  • No coatings needed to protect the Penstock
  • Faster installation and Easy handling due to weight reduction
  • Lower torque to open en close the valve compared to others in the market
  • Long service life up to 50 years.
  • Constant working temperature: -30ºC to 50ºC
  • Low to no maintenance needed
Product group Penstocks
Product name RSA 3 MwC
Materials HDPE/AISI316/EPDM/POM
Sealing 4 Sided
Operation point 1/2 Moon
Spindle type Non Rising
Turns to Open/Close 73
Torque open/Close in NM 25
Weight in KG 17
Leakage rate DIN 19569-4 Class 4
Sold per Piece
Stock item Yes
Accessories available Please see below

Accessories

Related accessories for this product.

ROwat Spindle Extension Penstock

Operation point 1/2 moon

Product: Spindle Extension Penstock
Materials: AIS316 / HDPE

Read more

ROwat Operating Key

Operation point, 1/2 moon

Product: T-Key 1/2 moon
Materials: AIS316

Read more

ROwat Headstock

900mm high

Product: ROwat Headstock
Materials: AISI304, HDPE

Read more
View all

Downloads

Technical datasheet
PDF Drawing

Related products

HDPE & Stainless Steel Wall Mounted Penstock

≤ 5 MwC, On/Off Seating Pressure

Product: RSA 5 MwC
Materials: HDPE/SS316/EDPM/POM

Read more

Features & Benefits: HDPE & Stainless Steel Wall Mounted Penstock - Ø 500mm

ROwat HDPE and Stainless Steel 316 Penstocks are being used to regulate the inlet and outlet side of Fluid Streams in for example Sewage Systems, Waste Water Treatment Plants or Wetlands.

By using HDPE and Stainless Steel 316 as our main product properties ROwat Penstocks are suitable to be installed in the most aggressive environments like Tropical Marine Inlets or Waste Water Treatment Plants.

In comparison with traditional used materials as Cast Iron and Steel our Penstocks are environmental friendly, durable and need low to zero maintenance while operating.

Our RSA 3 MwC Penstock is a compact On/Off Seating Penstock which can handle a waterpressure up to 3 MwC and is equipped with a fully Stainless Steel sliding door.



  • HDPE as main product property
  • Light weight compared to other materials like cast iron or coated steel,
  • High chemical resistance against salts, acids, alkalis, grease, etc.
  • UV protected
  • No coatings needed to protect the Penstock
  • Faster installation and Easy handling due to weight reduction
  • Lower torque to open en close the valve compared to others in the market
  • Long service life up to 50 years.
  • Constant working temperature: -30ºC to 50ºC
  • Low to no maintenance needed
Product group Penstocks
Product name RSA 3 MwC
Materials HDPE/AISI316/EPDM/POM
Sealing 4 Sided
Operation point 1/2 Moon
Spindle type Non Rising
Turns to Open/Close 90
Torque open/Close in NM 25
Weight in KG 23
Leakage rate DIN 19569-4 Class 4
Sold per Piece
Stock item Yes
Accessories available Please see below

Accessories

Related accessories for this product.

ROwat Spindle Extension Penstock

Operation point 1/2 moon

Product: Spindle Extension Penstock
Materials: AIS316 / HDPE

Read more

ROwat Operating Key

Operation point, 1/2 moon

Product: T-Key 1/2 moon
Materials: AIS316

Read more

ROwat Headstock

900mm high

Product: ROwat Headstock
Materials: AISI304, HDPE

Read more
View all

Downloads

Technical datasheet
PDF Drawing

Related products

HDPE & Stainless Steel Wall Mounted Penstock

≤ 5 MwC, On/Off Seating Pressure

Product: RSA 5 MwC
Materials: HDPE/SS316/EDPM/POM

Read more
